Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'Draftsman Grade I in Kerala Water Authority , Sub Engineer (Civil) in KSEB Ltd' And exam conducted in the year 2023. And Question paper code was '114/2023'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.

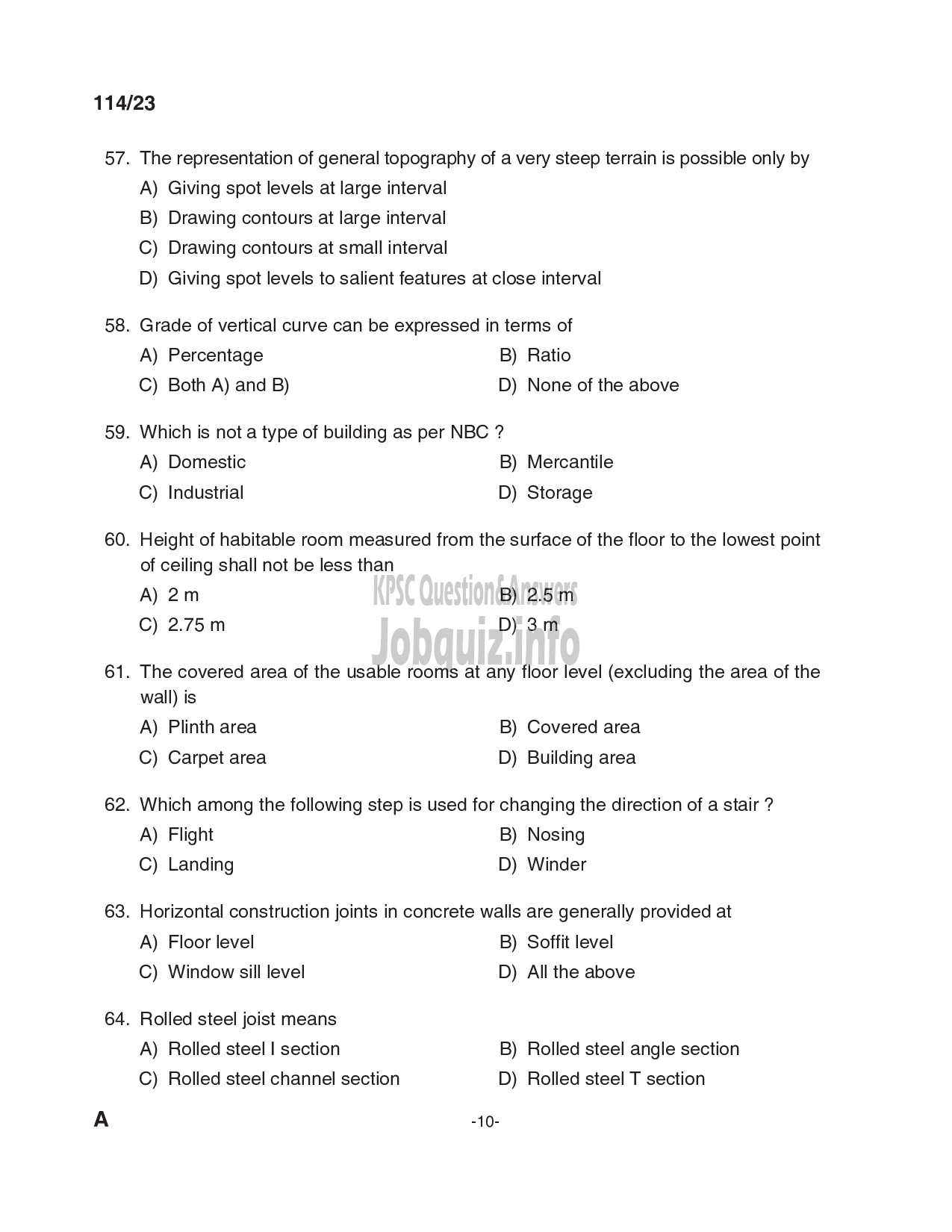

114/23
57.
58.
59.
60.
61.
62.
63.
64.
The representation of general topography of a very steep terrain is possible only by
A) Giving spot levels at large interval
B) Drawing contours at large interval
C) Drawing contours at small interval
D) Giving spot levels to salient features at close interval
Grade of vertical curve can be expressed in terms of
A) Percentage B) Ratio
C) Both A) and B) D) None of the above
Which is not a type of building as per NBC ?
A) Domestic B) Mercantile
C) Industrial D) Storage
Height of habitable room measured from the surface of the floor to the lowest point
of ceiling shall not be less than
A) 2m B) 25m
C) 2.75m D) 3m
The covered area of the usable rooms at any floor level (excluding the area of the
wall) is
A) Plinth area B) Covered area
C) Carpet area D) Building area
Which among the following step is used for changing the direction of a stair ?
A) Flight B) Nosing
C) Landing D) Winder
Horizontal construction joints in concrete walls are generally provided at
A) Floor level B) Soffit level
C) Window sill level D) All the above
Rolled steel joist means
A) Rolled steel | section B) Rolled steel angle section
C) Rolled steel channel section D) Rolled steel T section
-10-
