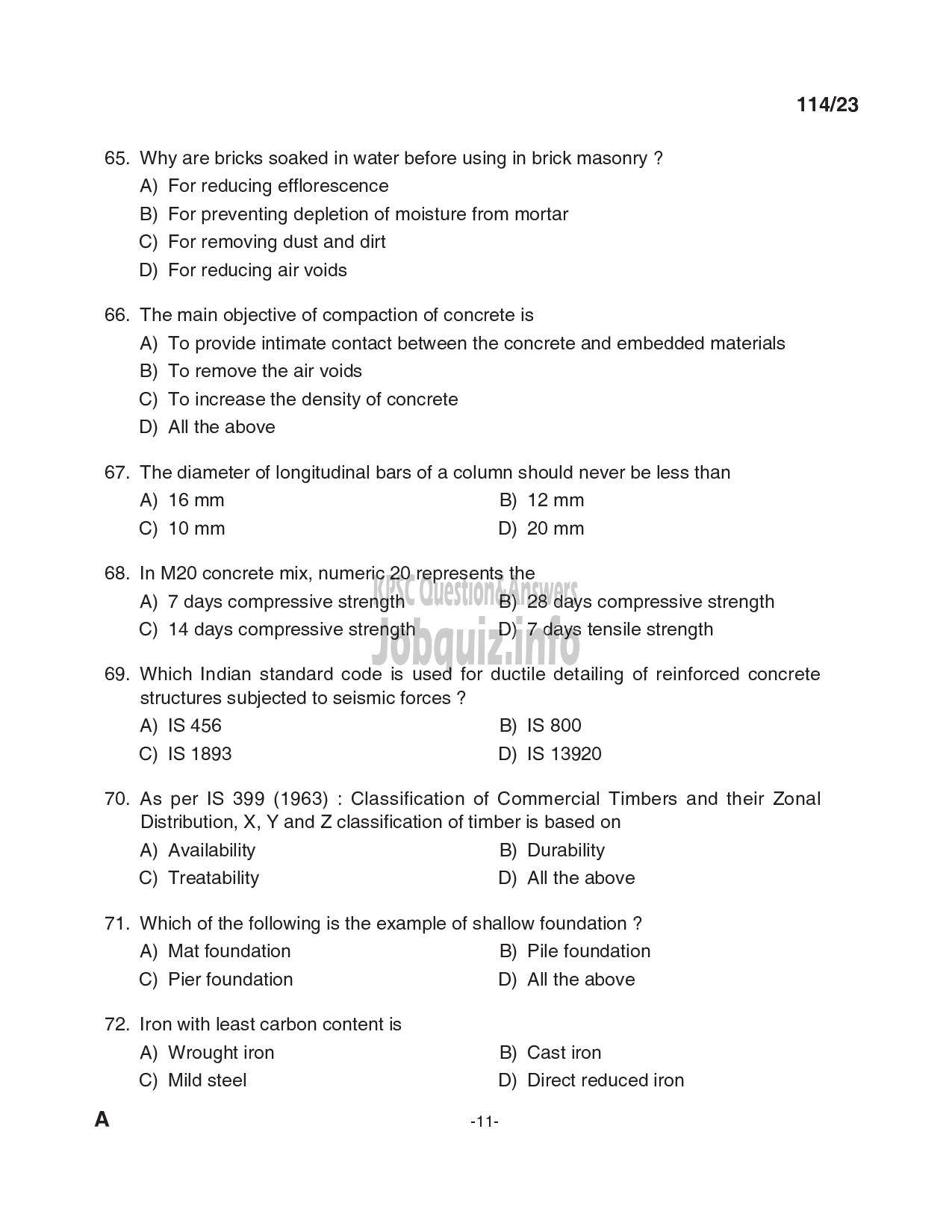

Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'Draftsman Grade I in Kerala Water Authority , Sub Engineer (Civil) in KSEB Ltd' And exam conducted in the year 2023. And Question paper code was '114/2023'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.
65.
66.
67.
68.
69.
70.
71.
72.
114/23
Why are bricks soaked in water before using in brick masonry ?
A) For reducing efflorescence
B) For preventing depletion of moisture from mortar
C) For removing dust and dirt
D) For reducing air voids
The main objective of compaction of concrete is
A) To provide intimate contact between the concrete and embedded materials
B) To remove the air voids
C) To increase the density of concrete
D) All the above
The diameter of longitudinal bars of a column should never be less than
A) 16mm B) 12mm
рен) 10mm D) 20 mm
In M20 concrete mix, numeric 20 represents the
A) 7 days compressive strength B) 28 days compressive strength
C) 14 days compressive strength D) 7 days tensile strength
Which Indian standard code is used for ductile detailing of reinforced concrete
structures subjected to seismic forces ?
A) IS 456 B) IS 800
C) IS 1893 D) IS 13920
As per IS 399 (1963) : Classification of Commercial Timbers and their Zonal
Distribution, X, Y and Z classification of timber is based on
A) Availability B) Durability
C) Treatability D) All the above
Which of the following is the example of shallow foundation ?
A) Mat foundation B) Pile foundation
C) Pier foundation D) All the above
lron with least carbon content is
A) Wrought iron B) Cast iron
C) Mild steel D) Direct reduced iron
-11-
