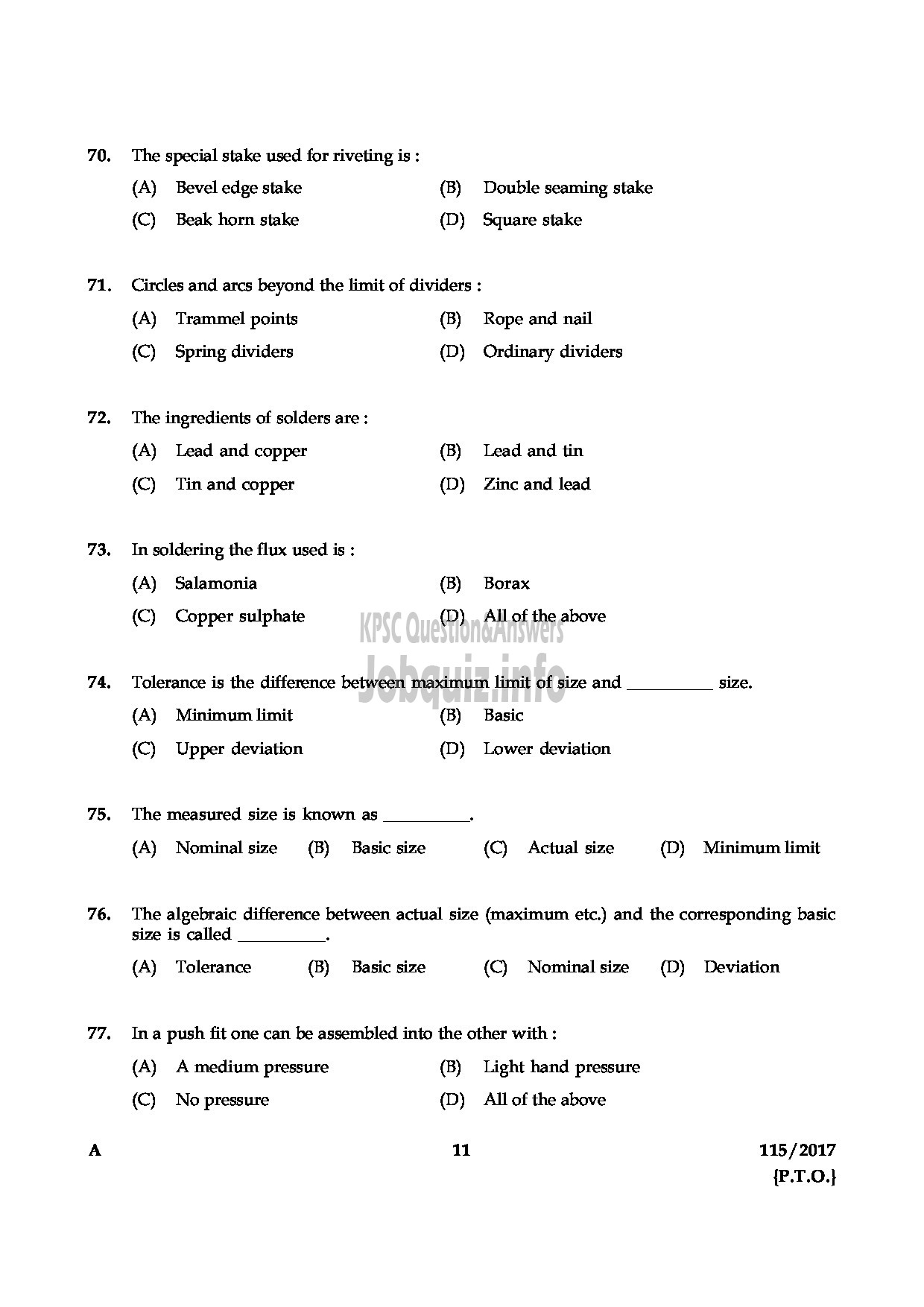

Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'TECHNICIAN GR II GENERAL MECHANIC KERALA CO OPERATIVE MILK MARKETING FEDERATION LTD' And exam conducted in the year 2017. And Question paper code was '115/2017'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.
70.
71.
72,
73,
74.
75,
76.
77.
The special stake used for riveting is :
(മ) Bevel edge stake (8) Double seaming stake
(ಲ) Beak horn stake (D) Square stake
Circles and arcs beyond the limit of dividers :
(ಹಿ) Trammel points (8) Rope and nail
(C) Spring dividers (D) Ordinary dividers
The ingredients of solders are :
(ಹಿ) Lead and copper (3) Lead and tin
(ಲ) Tin and copper (D) Zinc and lead
In soldering the flux used is :
(5) Salamonia (8) Borax
(ಲ) Copper sulphate (D) All of the above
Tolerance is the difference between maximum limit of size and शग.
(ಹಿ) Minimum limit (B) Basic
(~) Upper deviation (D) Lower deviation
The measured size is known as
(മ) Nominal size (8) Basic size (ಲ) Actual size (D) Minimum limit
The algebraic difference between actual size (maximum etc.) and the corresponding basic
size is called
(ಹಿ) Tolerance (8) Basic size (9) Nominalsize (D) Deviation
In a push fit one can be assembled into the other with :
(5) A medium pressure (8) Light hand pressure
(ಲ) No pressure (D) All of the above
