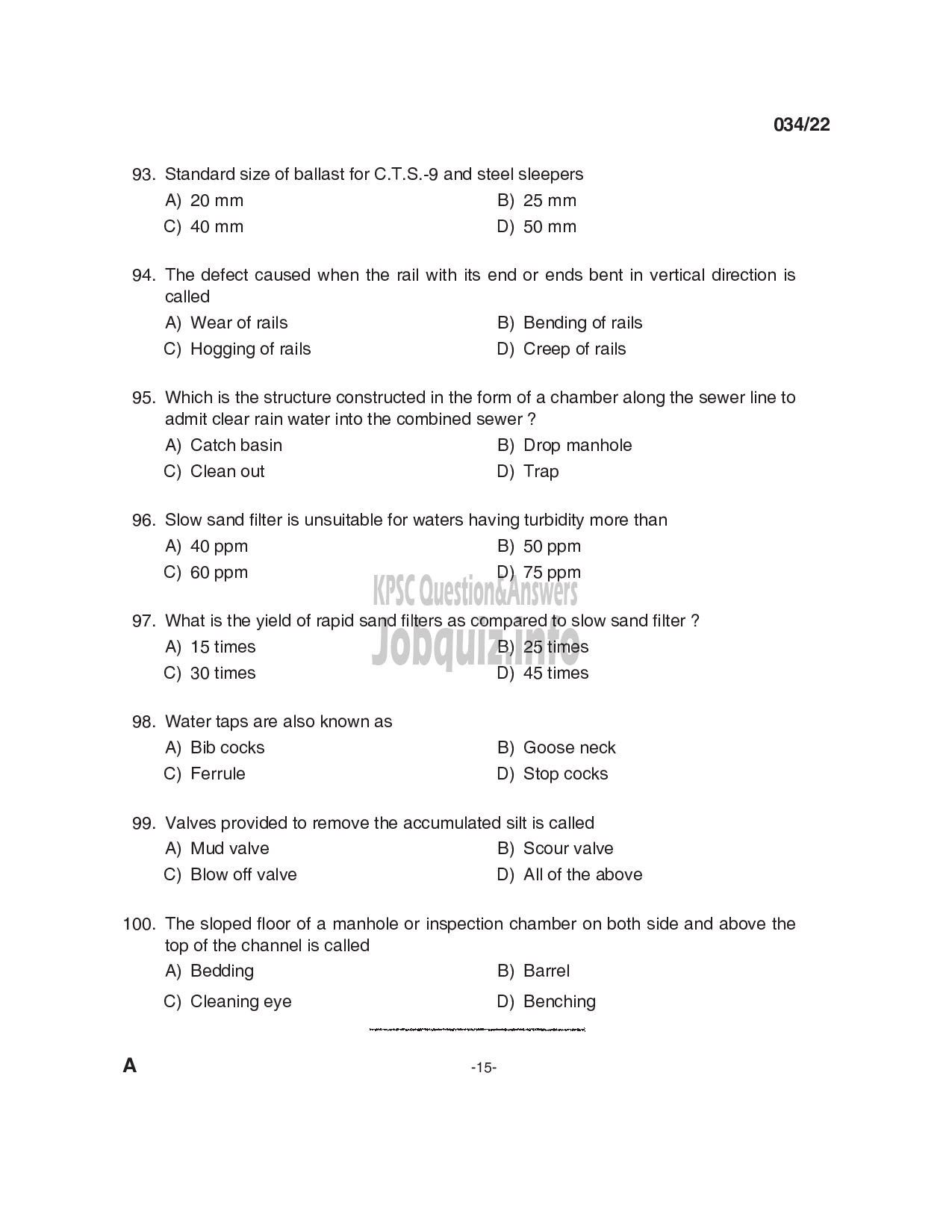

Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'Draftsman Gr II/ Town Planning Surveyor Gr II, Draftsman (Civil) & Tradesman (Civil) - Town & Country Planning, KAMCO & Technical ' And exam conducted in the year 2022. And Question paper code was '034/2022'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.
93.
94.
95.
96.
97.
98.
99.
100.
034/22
Standard size of ballast for C.T.S.-9 and steel sleepers
A) 20mm B) 25mm
©) 40mm 0) 50 mm
The defect caused when the rail with its end or ends bent in vertical direction is
called
A) Wear of rails B) Bending of rails
C) Hogging of rails D) Creep of rails
Which is the structure constructed in the form of a chamber along the sewer line to
admit clear rain water into the combined sewer ?
A) Catch basin B) Drop manhole
C) Clean out D) Trap
Slow sand filter is unsuitable for waters having turbidity more than
A) 40 ppm B) 50 ppm
C) 60 ppm D) 75 ppm
What is the yield of rapid sand filters as compared to slow sand filter ?
A) 15 times B) 25 times
©) 30 times D) 45 times
Water taps are also known as
A) Bib cocks B) Goose neck
C) Ferrule D) Stop cocks
Valves provided to remove the accumulated silt is called
A) Mud valve B) Scour valve
C) Blow off valve D) All of the above
The sloped floor of a manhole or inspection chamber on both side and above the
top of the channel is called
A) Bedding B) Barrel
C) Cleaning eye D) Benching
-15-
