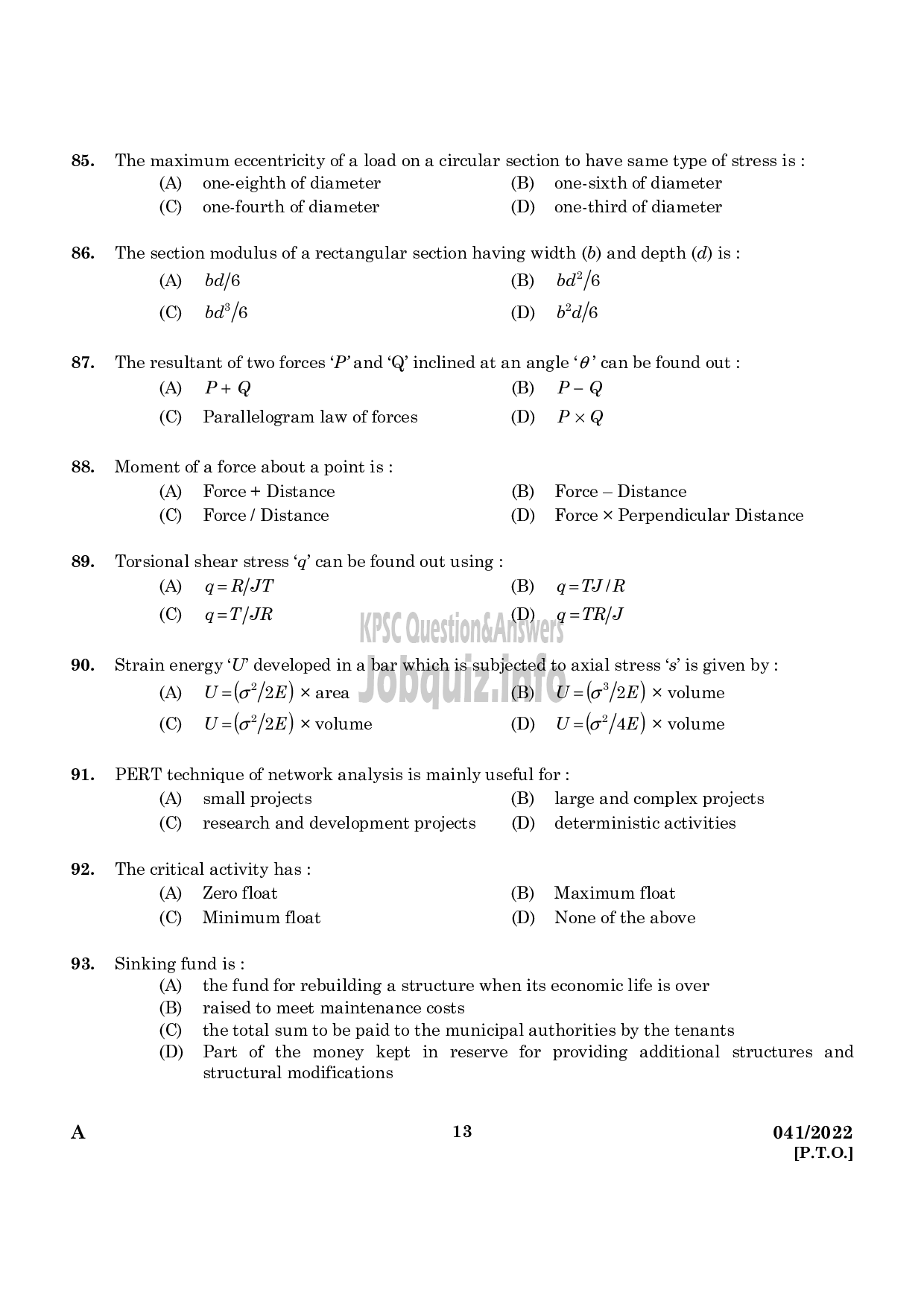

Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'Architectural Draftsman Gr.I, KSHB, (145/2019) PWD Architectural Wing (059/2021) ' And exam conducted in the year 2022. And Question paper code was '041/2022'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.
85.
86.
87.
88.
89.
90.
91.
92.
93.
The maximum eccentricity of a load on a circular section to have same type of stress is :
(ಹ) one-eighth of diameter (B) one-sixth of diameter
(C) one-fourth of diameter (D) one-third of diameter
The section modulus of a rectangular section having width (9) and depth (व) 15 :
(A) bd/6 ൯ 6ھ
(൭ 808/6 ൬ 86/6
The resultant of two forces ‘P’ and ‘Q’ inclined at an angle "0' can be found out :
(A) P+Q رم 0-0
(0) Parallelogram law of forces (90) Px@
Moment of a force about a point is :
(^) Force + Distance ൯) Force — Distance
)0 Force/ Distance (D) Force x Perpendicular Distance
Torsional shear stress व" can be found out using :
(^) | ൯ q=TJ/R
© ೪77/00 (0) q=TR/J
Strain energy ‘U’ developed in a bar which is subjected to axial stress ട് is given by:
(A) U=(6"/2E) x area (B) = (०2/2४) x volume
) ८ (०2/2४) x volume (D) U=(o?/4E) x volume
PERT technique of network analysis is mainly useful for :
(A) small projects (B) large and complex projects
(C) research and development projects (D) deterministic activities
The critical activity has :
(^) Zero float (B) Maximum float
(C) Minimum float (D) None of the above
Sinking fund 15 :
(൧) the fund for rebuilding a structure when its economic life is over
൯) raised to meet maintenance costs
(C) the total sum to be paid to the municipal authorities by the tenants
(D) Part of the money kept in reserve for providing additional structures and
structural modifications
