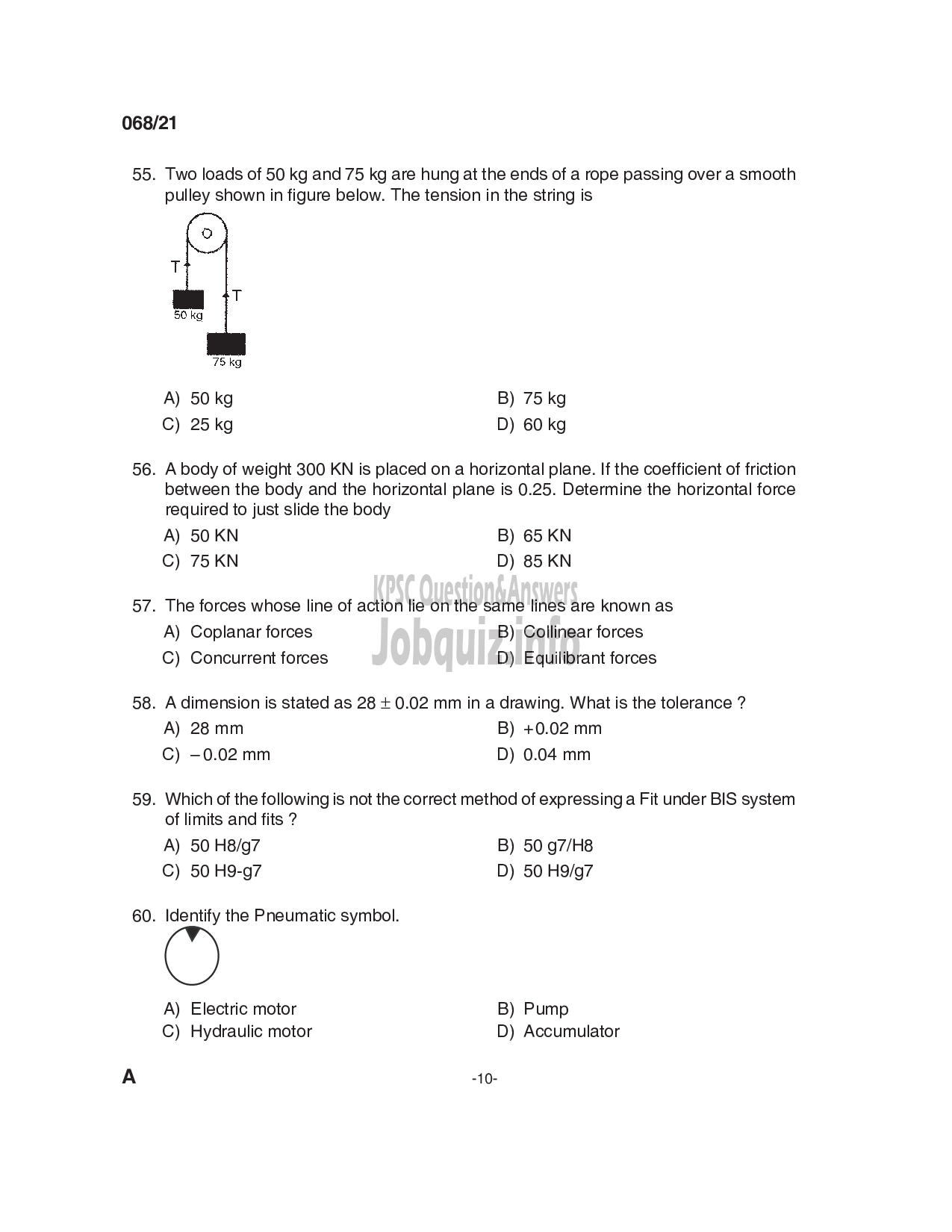

068/21
55. Two loads of 50 kg and 75 kg are hung at the ends of a rope passing over a smooth
pulley shown in figure below. The tension in the string is
9 kg
75 kg
A) 50 kg
C) 25kg
8) 75 kg
D) 60 kg
56. A body of weight 300 KN is placed on a horizontal plane. If the coefficient of friction
between the body and the horizontal plane is 0.25. Determine the horizontal force
required to just slide the body
A) 50 KN
©) 75 KN
B) 65 KN
0) 85 KN
57. The forces whose line of action lie on the same lines are known as
A) Coplanar forces
C) Concurrent forces
B) Collinear forces
D) Equilibrant forces
58. Adimension is stated as 28 + 0.02 mm in a drawing. What is the tolerance ?
A) 28mm
C) -0.02 mm
B) +0.02 mm
D) 0.04 mm
59. Which of the following is not the correct method of expressing a Fit under BIS system
of limits and fits ?
A) 50 H8/g7
©) 50 H9-g7
60. Identify the Pneumatic symbol.
A) Electric motor
C) Hydraulic motor
B) 50 g7/H8
ഉ) 50 H9/g7
B) Pump
D) Accumulator
-10-
