Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'Overseer (civil) ; Overseer Gr II/Draftsman Gr.II; Draftsman Gr I/ Overseer Gr I (civil) - LSGD ; KLDB; KLDC; PWD/Irigation (CAT.NO:127/20; 213/20; 347/20)' And exam conducted in the year 21. And Question paper code was '101/21'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.

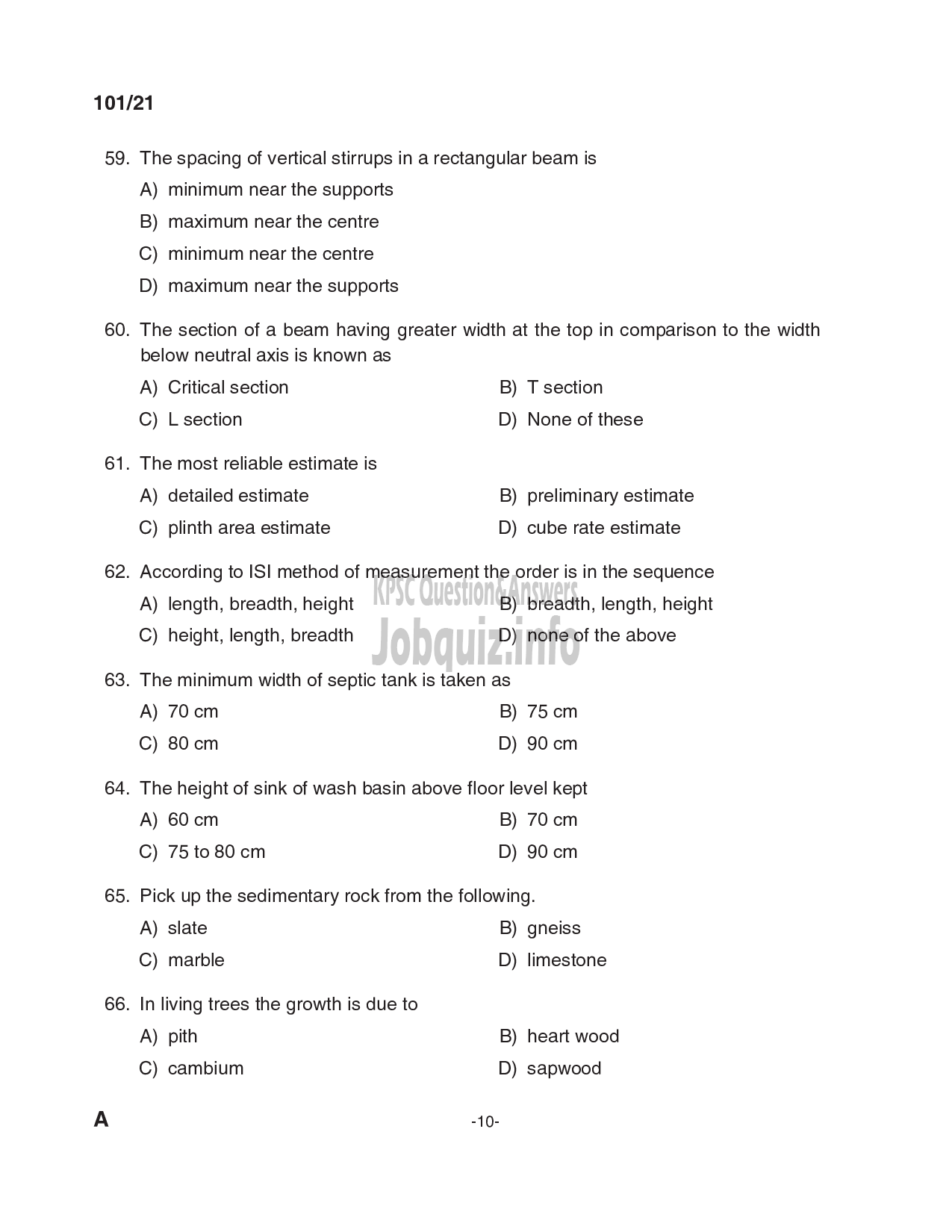

101/21
59. The spacing of vertical stirrups in a rectangular beam is
A) minimum near the supports
00
maximum near the centre
೧
)
) minimum near the centre
)
0
maximum near the supports
60. The section of a beam having greater width at the top in comparison to the width
below neutral axis is known as
A) Critical section B) T section
C) Lsection D) None of these
61. The most reliable estimate is
A) detailed estimate B) preliminary estimate
C) plinth area estimate D) cube rate estimate
62. According to ISI method of measurement the order is in the sequence
A) length, breadth, height B) breadth, length, height
C) height, length, breadth D) none of the above
63. The minimum width of septic tank is taken as
A) 70cm B) 75cm
C) 80cm 0) 90 cm
64. The height of sink of wash basin above floor level kept
A) 60cm B) 70cm
C) 75 to 80 cm 0) 90 cm
65. Pick up the sedimentary rock from the following.
A) slate B) gneiss
C) marble D) limestone
66. In living trees the growth is due to
A) pith B) heart wood
C) cambium D) sapwood
