Below are the scanned copy of Kerala Public Service Commission (KPSC) Question Paper with answer keys of Exam Name 'Overseer (civil) ; Overseer Gr II/Draftsman Gr.II; Draftsman Gr I/ Overseer Gr I (civil) - LSGD ; KLDB; KLDC; PWD/Irigation (CAT.NO:127/20; 213/20; 347/20)' And exam conducted in the year 21. And Question paper code was '101/21'. Medium of question paper was in Malayalam or English . Booklet Alphacode was 'A'. Answer keys are given at the bottom, but we suggest you to try answering the questions yourself and compare the key along wih to check your performance. Because we would like you to do and practice by yourself.
52.
53.
54.
55.
56.
57.
58.

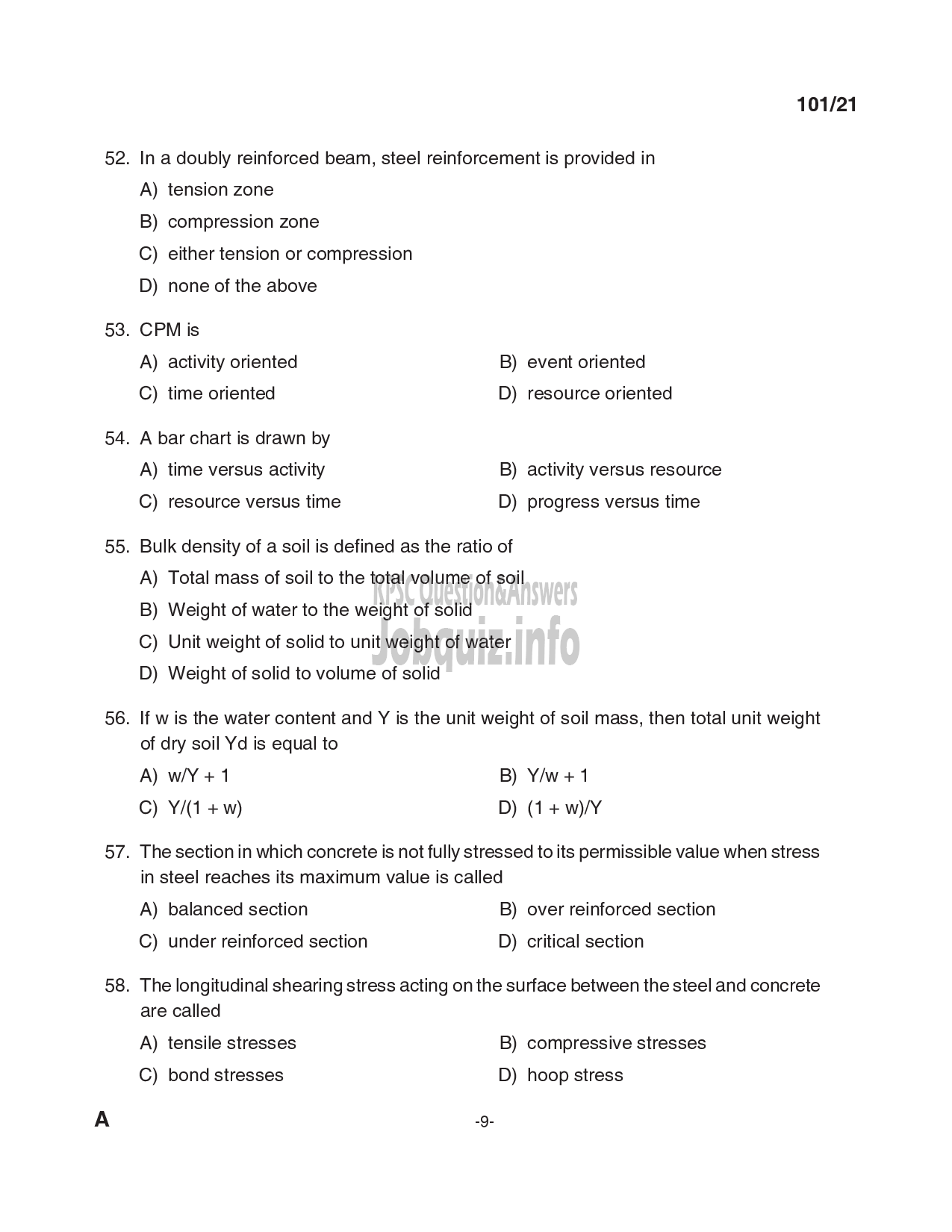

101/21
In a doubly reinforced beam, steel reinforcement is provided in
A) tension zone
B) compression zone
)
C) either tension or compression
)
D) none of the above
CPM is
A) activity oriented B) event oriented
C) time oriented D) resource oriented
A bar chart is drawn by
A) time versus activity B) activity versus resource
C) resource versus time D) progress versus time
Bulk density of a soil is defined as the ratio of
A) Total mass of soil to the total volume of soil
B) Weight of water to the weight of solid
C) Unit weight of solid to unit weight of water
)
0) Weight of solid to volume of solid
If w is the water content and Y is the unit weight of soil mass, then total unit weight
of dry soil Yd is equal to
A) ۷۷ +1 8) ۷۸۷ + 1
C) ശ്രീയ) D) )1 +۸۷
The section in which concrete is not fully stressed to its permissible value when stress
in steel reaches its maximum value is called
A) balanced section B) over reinforced section
C) under reinforced section D) critical section
The longitudinal shearing stress acting on the surface between the steel and concrete
are called
A) tensile stresses B) compressive stresses
C) bond stresses D) hoop stress
