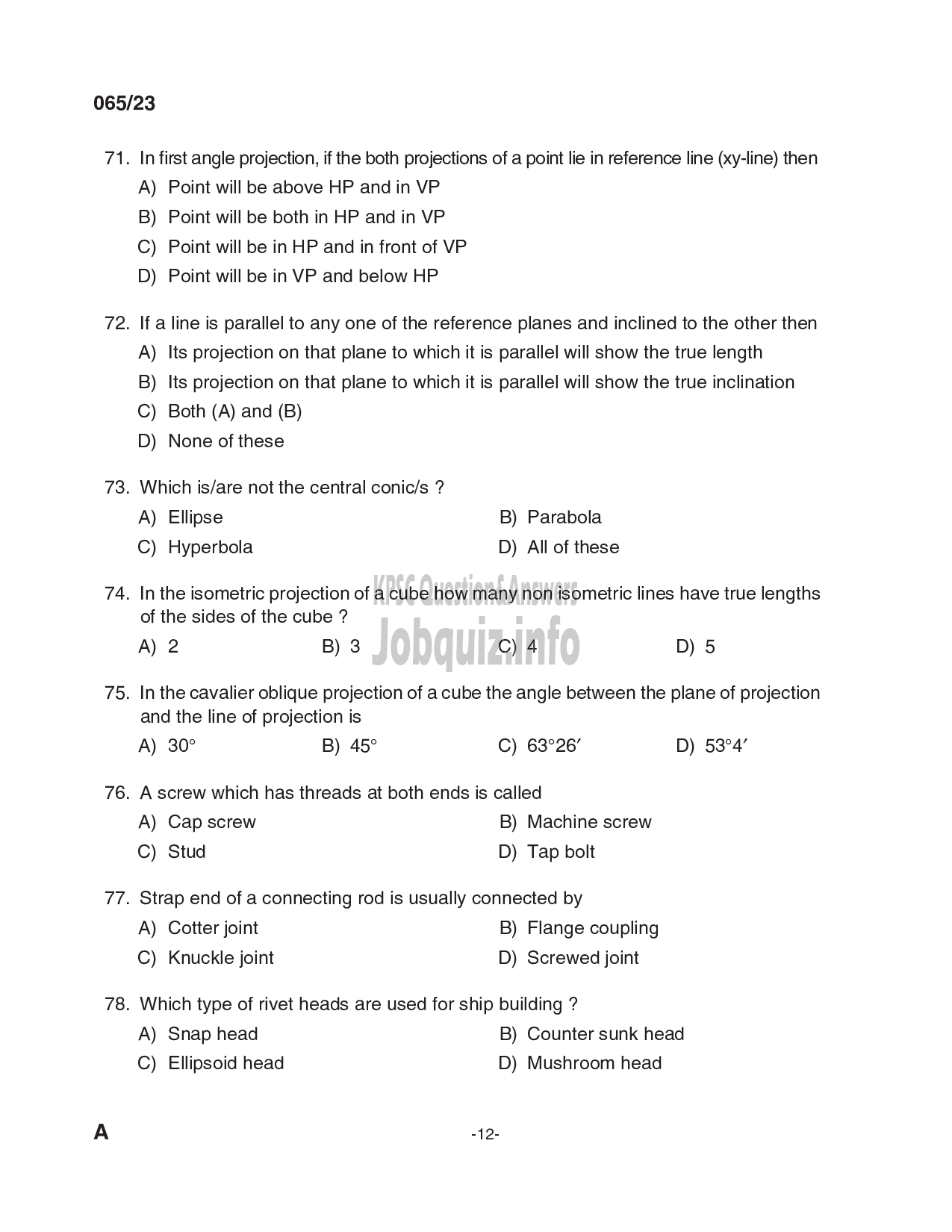

065/23
71.
72.
73.
74.
75.
76.
77.
78.
In first angle projection, if the both projections of a point lie in reference line (xy-line) then
A) Point will be above HP and in VP
B) Point will be both in HP and in VP
C) Point will be in HP and in front of VP
D) Point will be in VP and below HP
If a line is parallel to any one of the reference planes and inclined to the other then
A
B
0
0
) Its projection on that plane to which it is parallel will show the true length
) 115 projection on that plane to which it is parallel will show the true inclination
) Both (A) and (B)
) None of these
Which is/are not the central conic/s ?
A) Ellipse B) Parabola
C) Hyperbola D) All of these
In the isometric projection of a cube how many non isometric lines have true lengths
of the sides of the cube ?
A) 2 B) 3 04 0) 5
In the cavalier oblique projection of a cube the angle between the plane of projection
and the line of projection is
A) 30° B) 45° C) 63°26’ 0) 53०4“
A screw which has threads at both ends is called
A) Cap screw B) Machine screw
C) Stud D) Tap bolt
Strap end of a connecting rod is usually connected by
A) Cotter joint B) Flange coupling
C) Knuckle joint D) Screwed joint
Which type of rivet heads are used for ship building ?
A) Snap head B) Counter sunk head
C) Ellipsoid head D) Mushroom head
-12-
