93.

94.

95.

96.

97.

98.

99.

100.

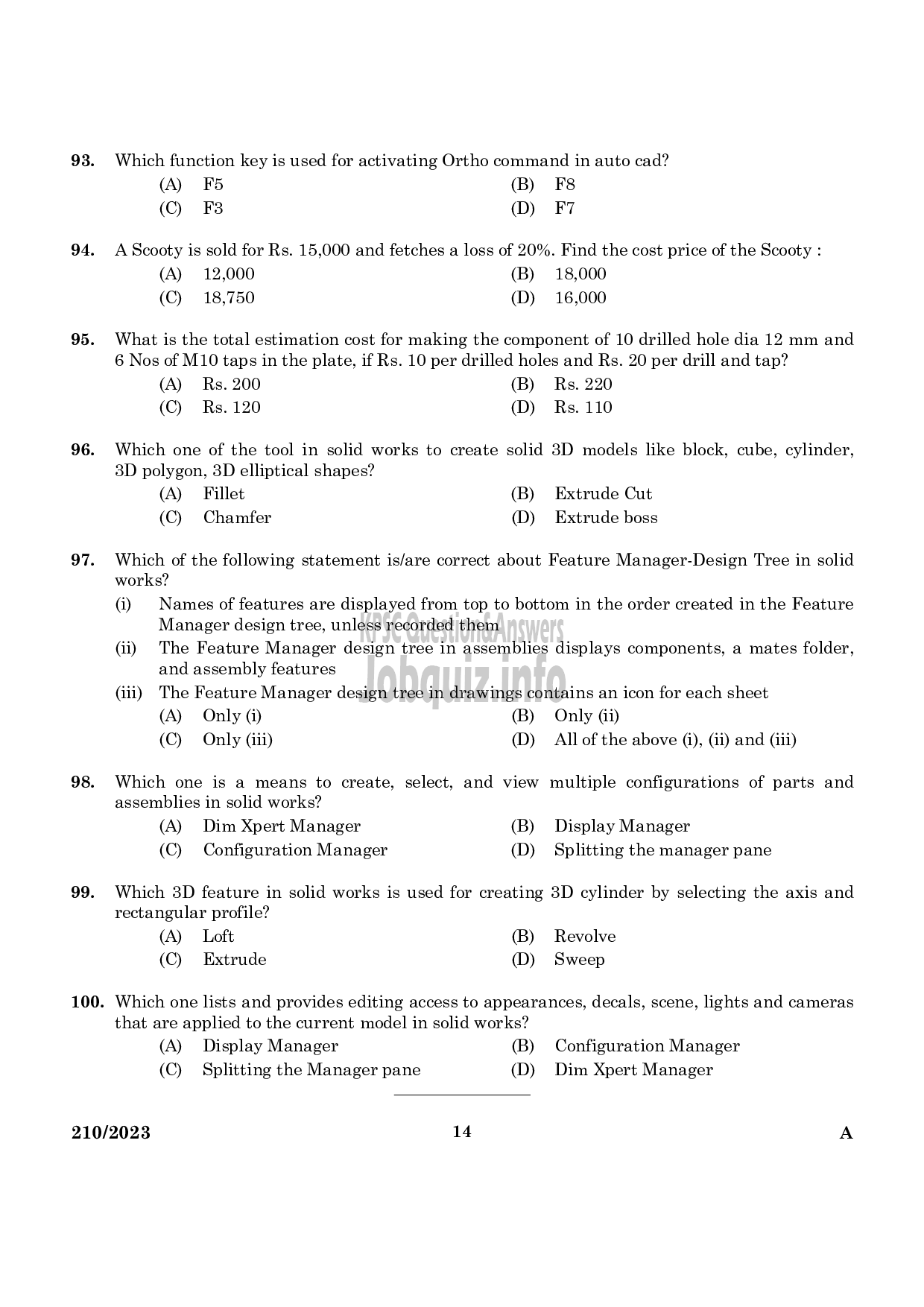

Which function key is used for activating Ortho command in auto cad?

(A) F5 (®) 88
(C) ۹ (D) F7
A Scooty is sold for Rs. 15,000 and fetches a loss of 20%. Find the cost price of the Scooty :
(A) 0 (B) 18,000
(C) 18,750 (D) 16,000

What is the total estimation cost for making the component of 10 drilled hole dia 12 mm and
6 Nos of M10 taps in the plate, if Rs. 10 per drilled holes and Rs. 20 per drill and tap?

(A) Rs. 200 (B) Rs. 220

(0) Rs. 120 (D) Rs. 110

Which one of the tool in solid works to create solid 3D models like block, cube, cylinder,
3D polygon, 3D elliptical shapes?

(A) Fillet (B) Extrude Cut

(C) Chamfer ൯) Extrude boss

Which of the following statement is/are correct about Feature Manager-Design Tree in solid
works?

(i) Names of features are displayed from top to bottom in the order created in the Feature
Manager design tree, unless recorded them

(ii) The Feature Manager design tree in assemblies displays components, a mates folder,
and assembly features

(iii) The Feature Manager design tree in drawings contains an icon for each sheet
(A) Only @) (B) Only Gi)
(C) Only Gii) ൯) All of the above (i), (ii) and (iii)

Which one is a means to create, select, and view multiple configurations of parts and
assemblies in solid works?

(A) Dim Xpert Manager (B) Display Manager
(C) Configuration Manager (D) Splitting the manager pane

Which 3D feature in solid works is used for creating 3D cylinder by selecting the axis and
rectangular profile?

(^) Loft (B)_ Revolve
(C) Extrude (D) Sweep

Which one lists and provides editing access to appearances, decals, scene, lights and cameras
that are applied to the current model in solid works?

(A) Display Manager (B) Configuration Manager

(C) Splitting the Manager pane (D) Dim Xpert Manager

210/2023 14 A
