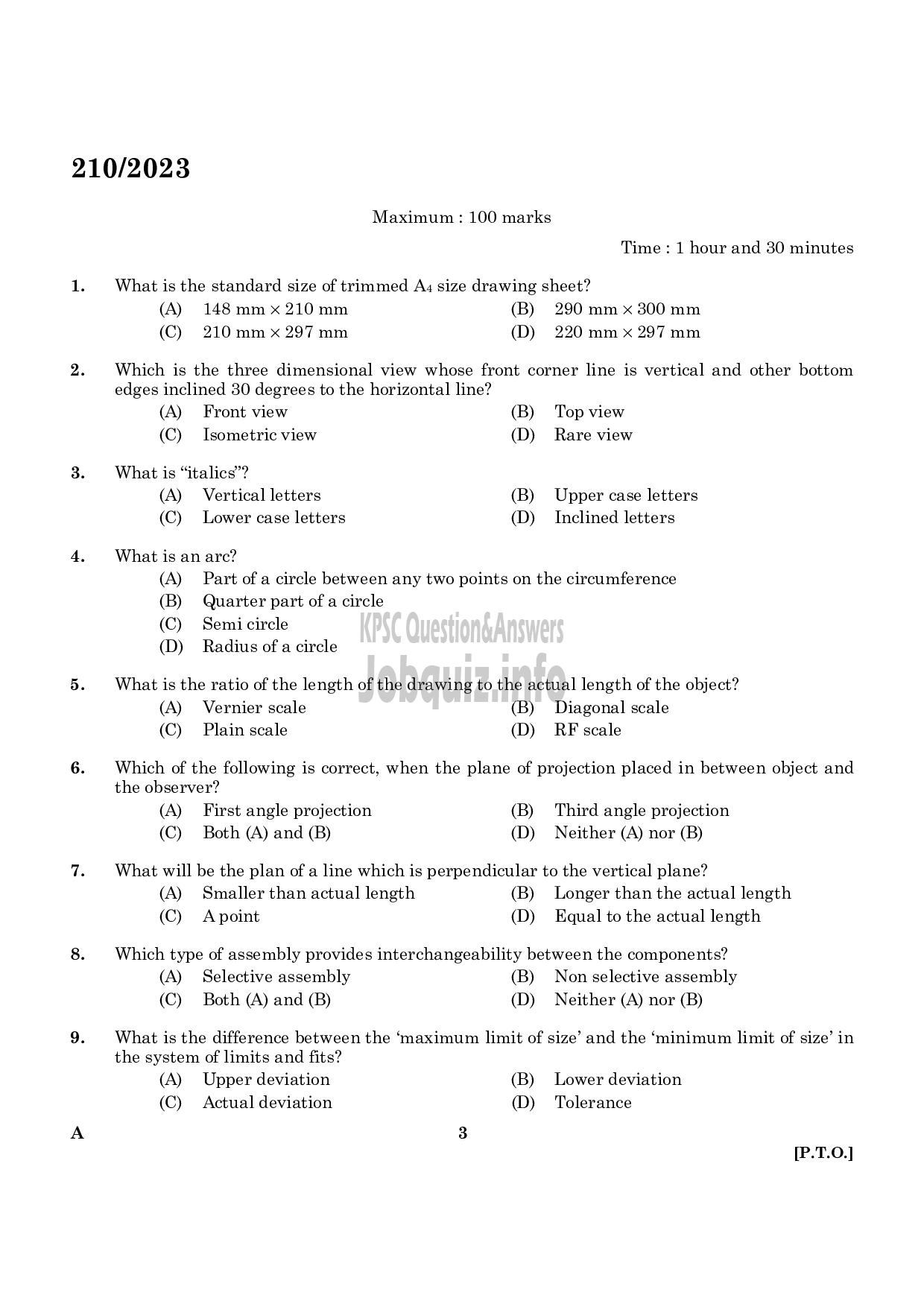

210/2023

Maximum : 100 marks

Time : 1 hour and 30 minutes

1. What is the standard size of trimmed As size drawing sheet?
(A) 148 mmx 210mm (B) 290 mm x 300 mm
(0) 210mm x 297 mm (D) 220 mm x 297 mm
2. | Which is the three dimensional view whose front corner line is vertical and other bottom
edges inclined 30 degrees to the horizontal line?
(^) Front view (B) Top view
(C) Isometric view (D) Rare view

3. What is “italics”?
(^) Vertical letters (B) Upper case letters
(C) Lower case letters (D) Inclined letters

4. What is an arc?
(A) Part of a circle between any two points on the circumference
(B) Quarter part of a circle
(C) Semi circle
(D) Radius of a circle

5. What is the ratio of the length of the drawing to the actual length of the object?
(^) Vernier scale (B) Diagonal scale
(C) Plain scale (D) RF scale

6. | Which of the following is correct, when the plane of projection placed in between object and
the observer?

(4) First angle projection (B) Third angle projection
(C) Both (A) and (B) (D) Neither (A) nor (B)
7. What will be the plan of a line which is perpendicular to the vertical plane?
(A) Smaller than actual length (B) Longer than the actual length
(0) Apoint (D) Equal to the actual length
8. | Which type of assembly provides interchangeability between the components?
(^) Selective assembly (B) Non selective assembly
(C) Both (A) and (B) (D) Neither (A) nor (B)
9. What is the difference between the ‘maximum limit of size’ and the ‘minimum limit of size’ in
the system of limits and fits?
(^) Upper deviation (B) Lower deviation
(C) Actual deviation (D) Tolerance
A 3

[P.T.0.]
