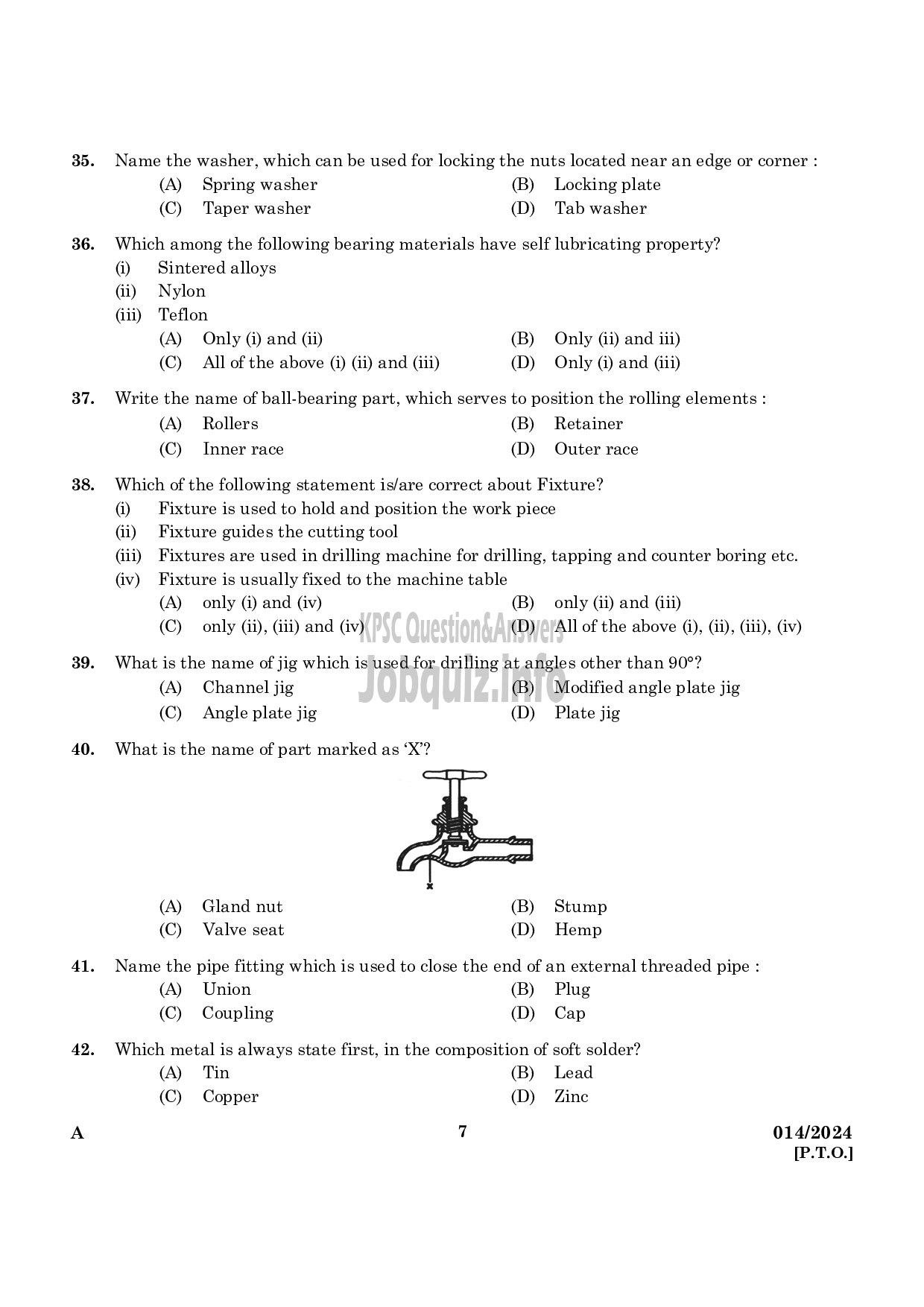

35. Name the washer, which can be used for locking the nuts located near an edge or corner :
(A) Spring washer (B) Locking plate
(C) Taper washer (D) Tab washer

36. Which among the following bearing materials have self lubricating property?
டு Sintered alloys

Gi) Nylon
(1) Teflon
(ಯ) Only (i) and (ii) (B) Only (ii) and iii)
(C) All of the above (i) (ii) and (iii) (D) Only (@) and (iii)
37. Write the name of ball-bearing part, which serves to position the rolling elements :
(^) Rollers (B) Retainer
(C) Inner race (D) Outer race

38. Which of the following statement is/are correct about Fixture?
൫) Fixture is used to hold and position the work piece
(ii) Fixture guides the cutting tool
(110) Fixtures are used in drilling machine for drilling, tapping and counter boring etc.
(iv) Fixture is usually fixed to the machine table

(A) _ only (ji) and (iv) (B) _ only Gi) and (ii)

(C) _ only (ii), (iii) and (iv) (D) Allof the above (i), (ii), (iii), (iv)
39. What is the name of jig which is used for drilling at angles other than 90°?

(ಹ) Channel jig (B) Modified angle plate jig

(C) Angle plate jig (D) Plate jig

40. What is the name of part marked 7۷۶

(^) Gland nut (B) Stump
(C) Valve seat (D) Hemp
41. Name the pipe fitting which is used to close the end of an external threaded pipe :
(^) Union (B) Plug
(C) Coupling (D) Cap
42. Which metal is always state first, in the composition of soft solder?
(A) Tin (B) Lead
(C) Copper (D) Zine
